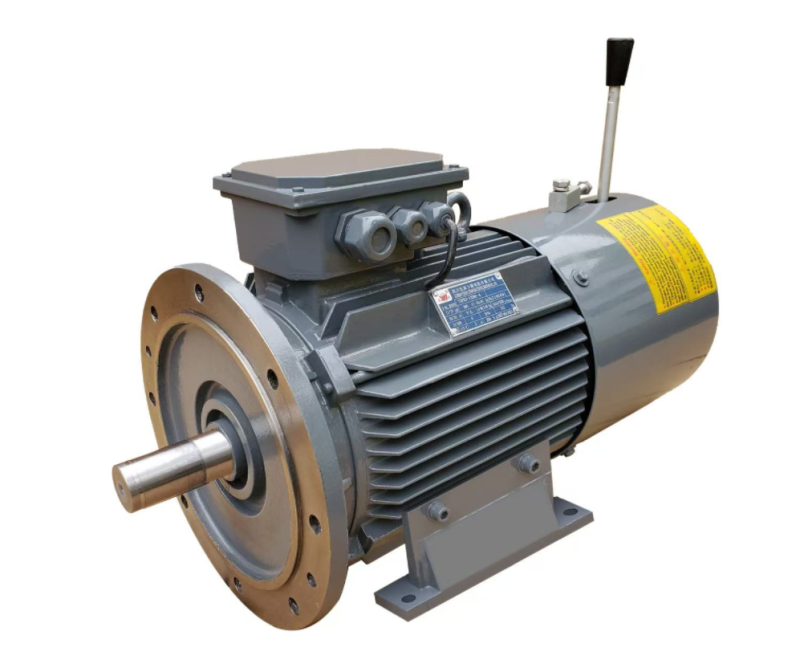

YZPE2-132-4 series construction lift motor
YZPE2-132-4series
Special motor for nstruction hoist
High-strength shell structure, surface water-based environmentally friendly paint, beautiful and corrosion-resistant
Environmentally friendly variable frequency insulation structure, wide speed regulation range and high reliability.
Small vibration, low noise, small starting current, large starting torque and high efficiency.
Dual-standard design, Y/△ connection conversion can meet 50/87Hz usage requirements.

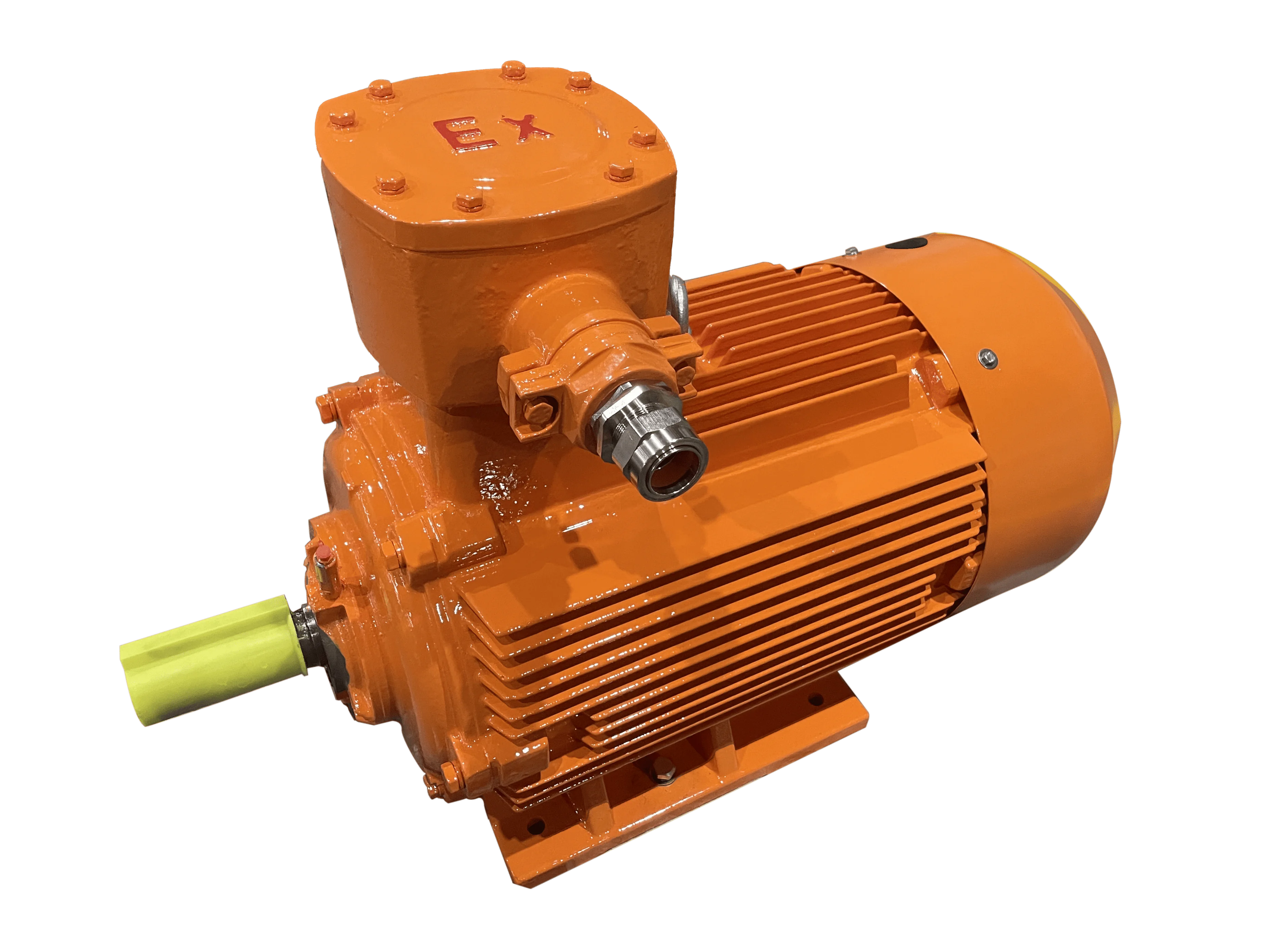

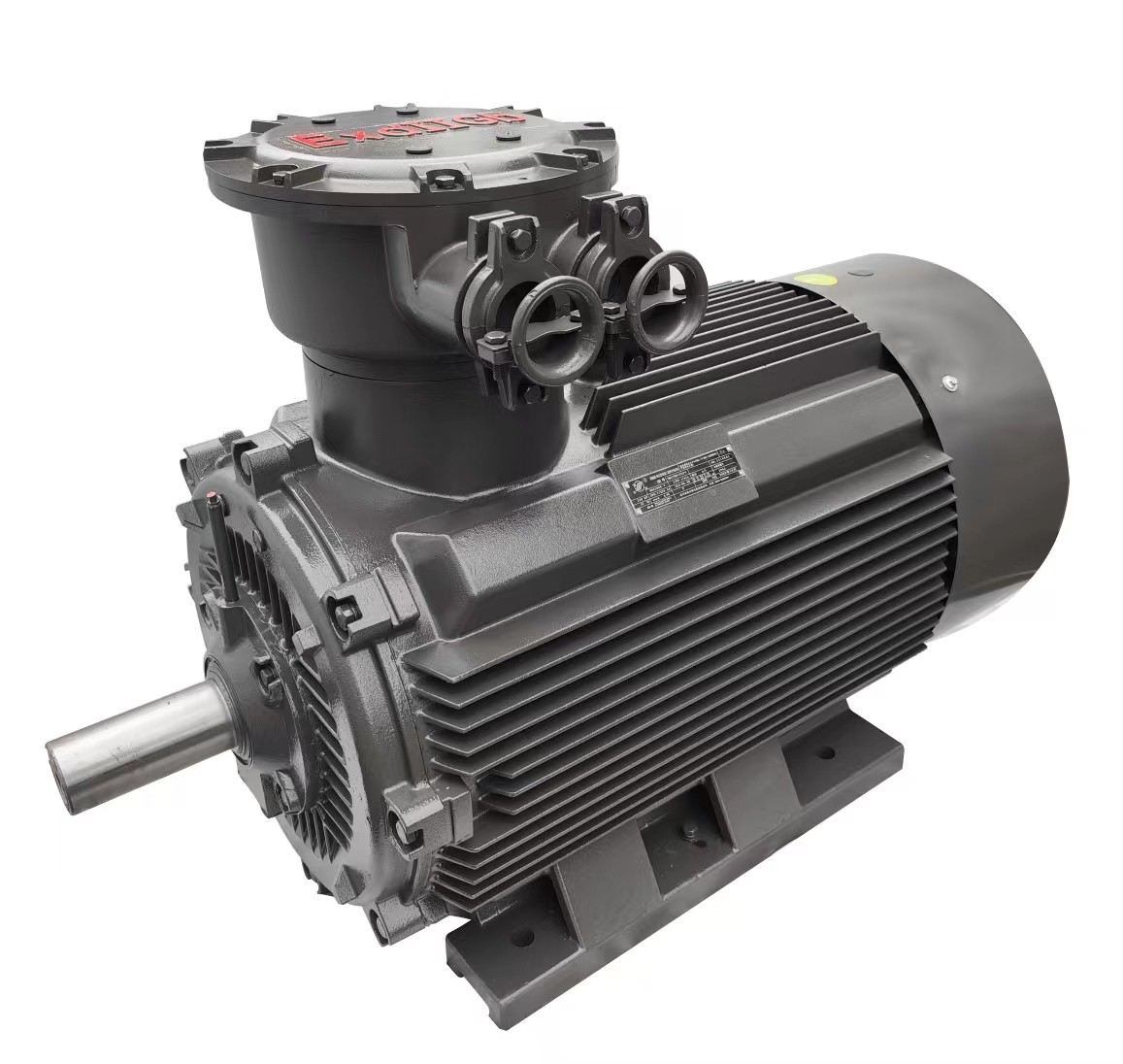

YBX3 YFB3 Motor
YBX3/YFB3 SERIES FLAMEPROOF AND DUST EXPLOSION-PROOF
THREE PHASE ASYNCHRONOUS MOTOR
Complies with GB/T 3836.1-2021 "Explosive Atmospheres - Part 1: Equipment - General Requirements", GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures 'd'", and GB/T 3836.31-2021 "Explosive Atmospheres - Part 31: Equipment Protected by Dust Ignition-Proof Enclosures 't'".
Uses high magnetic permeability and low loss cold-rolled silicon steel sheets, meeting the third-level efficiency standards specified in GB/T 18613-2020 "Minimum Allowable Values of Energy Efficiency and Energy Efficiency Grades for Motors".
Simultaneously meets air explosion-proof (flameproof) and dust explosion-proof requirements, with a special structure that ensures explosion-proofing from the inside out.
Flameproof high-strength enclosure, dedicated dust-proof skeleton, and oil seal achieve high-level protection.
TOWER CRANE MOTOR
l A variable-frequency special motor is equipped with a wide range of frequency conversion,small starting current and big starting torque;
I A thermal protection component is buried into the winding,and can be wired into motor temperature control and protection system,making the motor operation more secure and reliable;
I Strengthened inter-turn insulation is adopted in the stator winding,so the insulation reliability is higher;
I Inserted encoder isapplied which makes it more convenient in operation and maintainance.
I Special bearing isadopted for variable-frequencymotor,so it's moresuitable for variable-frequency operating environment;
I The rotating shaft is subject to alloy steel heat treatment,showing better mechanical strength;
I The brakefited withspecial manual elease device)isa de-energized braketype (nationalutlitymodel patent,Patent No.ZL201120188124.9\ZL201120188173.2),
with big braking torque andshort response time.
_r__1707-1280_c__2d2822_.jpg?x-oss-process=style/thumb_small "Bridge crane reduction motor (LYP270)")
Bridge crane reduction motor (LYP270)
LYP series lifting motors come in various specifications, supporting a power range from 0.37 to 38kW.
Optimized electromagnetic design with lower starting current and higher torque limits.
Built-in thermal switches for real-time protection.
Offers two options: dual-speed and variable frequency.
Dual-sided safety braking.
IP55 | Protection level: IP55.

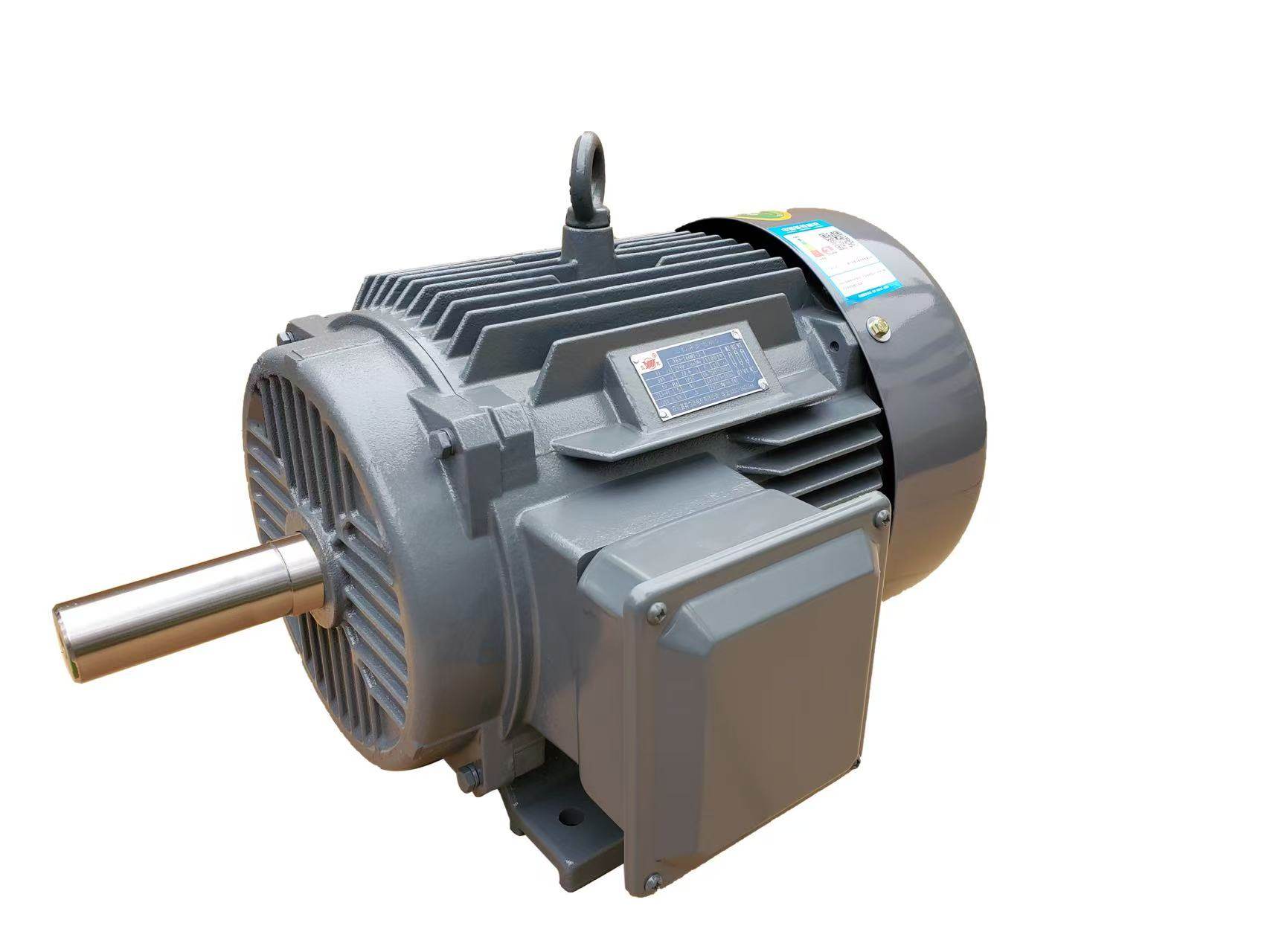

YE4 SERIES
High-strength housing structure with water-based environmentally
friendly paint, aesthetically pleasing and corrosion-resistant.
Uses high magnetic permeability and low-loss cold-rolled silicon steel sheets, compliant with the GB/T 18613-2020 "Minimum Allowable Values of Energy Efficiency and Energy Efficiency Grades for Motors" standard, meeting the second-level efficiency requirements.
Low vibration, low noise, reliable performance, easy installation and
maintenance.
Widely used in general machinery such as fans, water pumps, machine tools, and compressors, as well as in harshenvironments like petroleum, chemical, steel, and mining industries.
YE3
High-strength housing structure with water-based environmentally friendly paint, aesthetically pleasing and corrosion-resistant.
Uses high magnetic permeability and low-loss cold-rolled silicon steel sheets, compliant with the GB/T 18613-2020 "Minimum Allowable Values of Energy Efficiency and Energy Efficiency Grades for Motors" standard, meeting the third-level efficiency requirements
Low vibration, low noise, reliable performance, easy installation and maintenance.
Widely used in general machinery such as fans, water pumps, machine tools, and compressors, as well as in harsh environments like petroleum, chemical, steel, and mining industries
M/MB series Electric actuator three-phase asynchronous motor
l The motor of this series of electric actuators adopts Siemens motor technology.
l The stator winding adopts special insulation materials and processes.
l A special thermistor is embedded in the winding to protect the motor winding from overheating and burning.
l This series of motors is suitable for process operating environments that require frequent flow adjustment.
l After the electric actuator and the drive reducer are assembled, the overall protection level can reach IP66 requirements.
l The motor housing is made of high-strength aluminum alloy die-casting, and the surface paint is beautiful and corrosion-resistant.
l The motor is flameproof.
M/MB series Electric actuator three-phase asynchronous motor
